With global annual solid waste generation now exceeding 10 billion tons, the integrity of containment systems in disposal facilities is of paramount importance. The failure of anti-seepage liners in landfills and tailings ponds can lead to the leakage of hazardous substances, such as heavy metals and organic pollutants, into the surrounding soil and groundwater, causing severe environmental contamination. In response to rising public environmental awareness and the push towards building "zero-waste cities," there is an urgent need for disposal facilities to transition from a reactive "passive leak plugging" model to a proactive "active early warning" strategy through digitalization. Real-time online monitoring systems have thus become a core infrastructure for modern environmental safety management. This case study details a project where our company implemented a monitoring system based on the principle of current density, building upon existing landfill monitoring techniques to provide a robust, proactive solution.
The project focuses on an iron ore tailings pond, a critical facility for managing mining byproducts. The anti-seepage system for this pond was designed with a single-layer High-Density Polyethylene (HDPE) geomembrane liner. Recognizing the critical need for liner integrity from the outset, a real-time online monitoring system was planned and constructed concurrently with the tailings pond itself.
The objective was to create a comprehensive, 24/7 monitoring solution for the entire anti-seepage liner. This was achieved by deploying a large array of sensors across the facility and integrating them with Internet of Things (IoT) and digital twin technologies. This integration allowed for the construction of a dynamic, three-dimensional digital model of the anti-seepage system, enabling a holistic and continuous assessment of its health and integrity.
The leakage detection method capitalizes on the fundamental electrical properties of the geomembrane and its surrounding media. The core principle relies on the high electrical insulation of the HDPE geomembrane and the contrasting electrical conductivity of the media (e.g., tailings, soil, leachate) located above and below it.

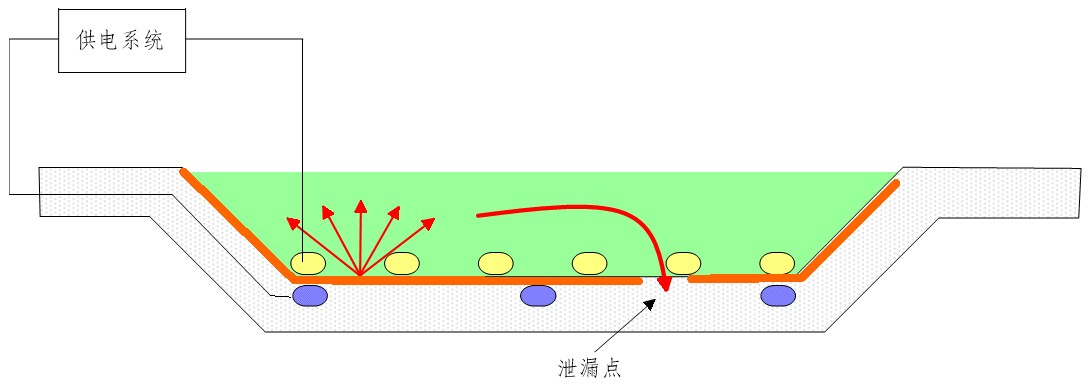

To implement this, signal-emitting devices are placed in the conductive media on both sides of the geomembrane and connected to a power source. This setup establishes an electrical field across the liner.
· Intact Geomembrane: When the HDPE geomembrane is intact, its high electrical resistance (high impedance) significantly restricts the flow of electrical current between the upper and lower media. The resulting return current is minimal, and the electrical potential is distributed uniformly across the field.
· Damaged Geomembrane: If a breach (e.g., a tear, puncture, or faulty seam) occurs, the high-resistance barrier is compromised at that location. The current flows from the positive electrode of the power source, through the conductive medium, across the breach, and back to the negative electrode, creating a distinct signal current loop. This generates a stable, measurable signal flow field in the media above and below the liner, with a concentration of current density at the point of the leak.
By systematically measuring the induced electrical signals at various sensor locations, it is possible to detect anomalies in the electrical field. Through advanced numerical analysis and model simulations, the system can precisely pinpoint the location of the leak. The automated leakage monitoring system for the tailings pond is designed entirely based on this robust principle.

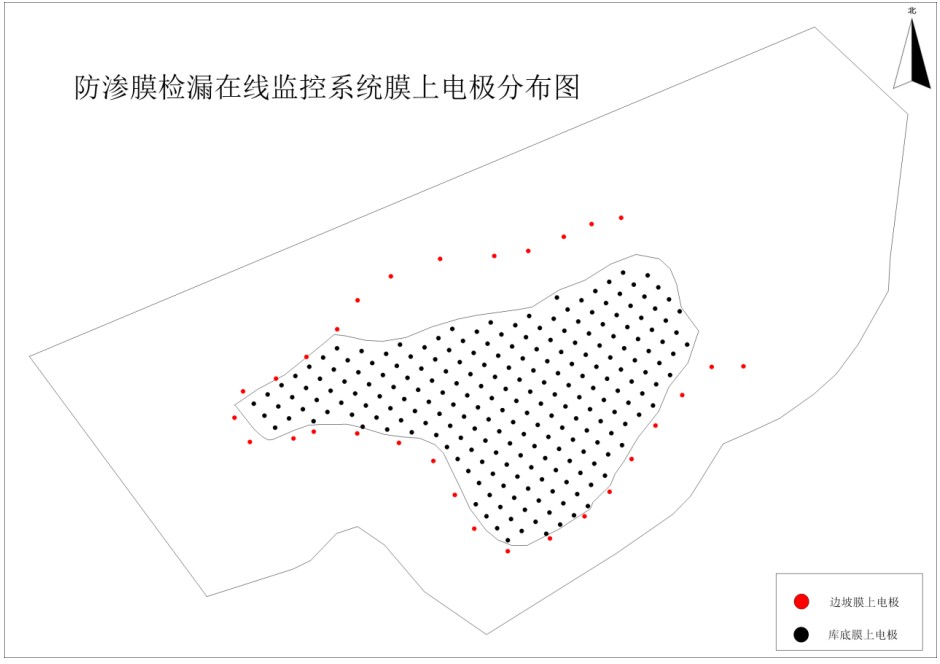

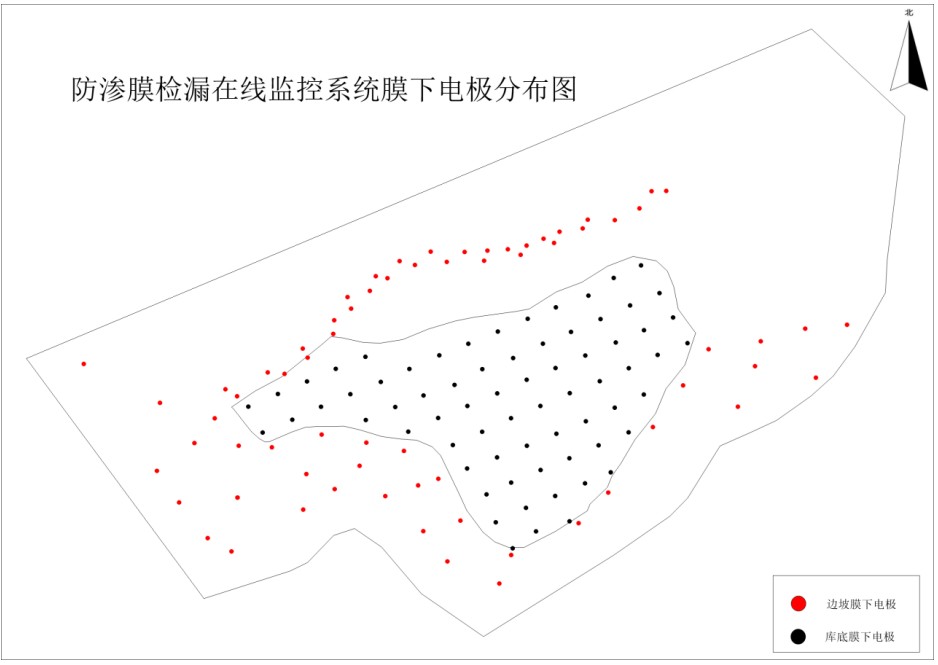

The effective deployment of sensors is crucial for the system's accuracy. Electrodes were strategically placed both beneath and above the geomembrane liner to ensure complete coverage of the monitoring area. The following diagrams illustrate the typical layout for the monitoring electrodes.

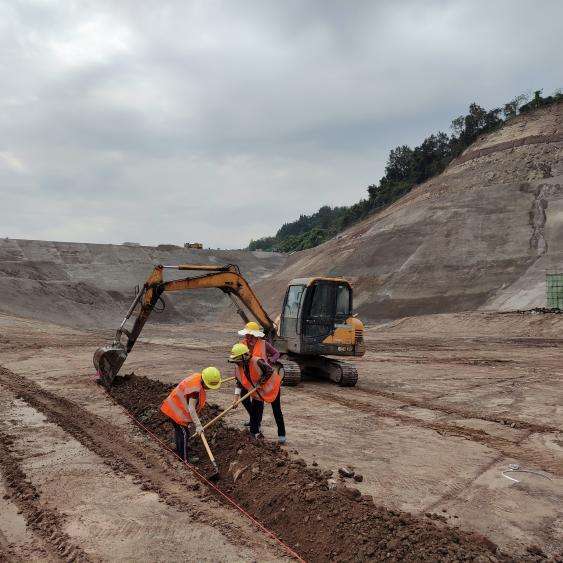

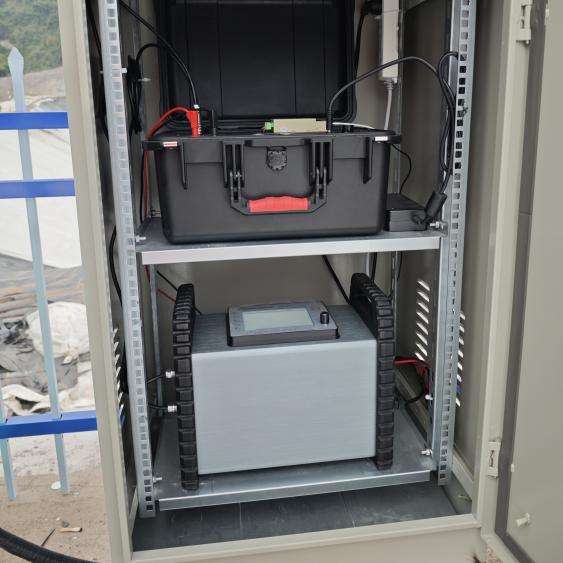

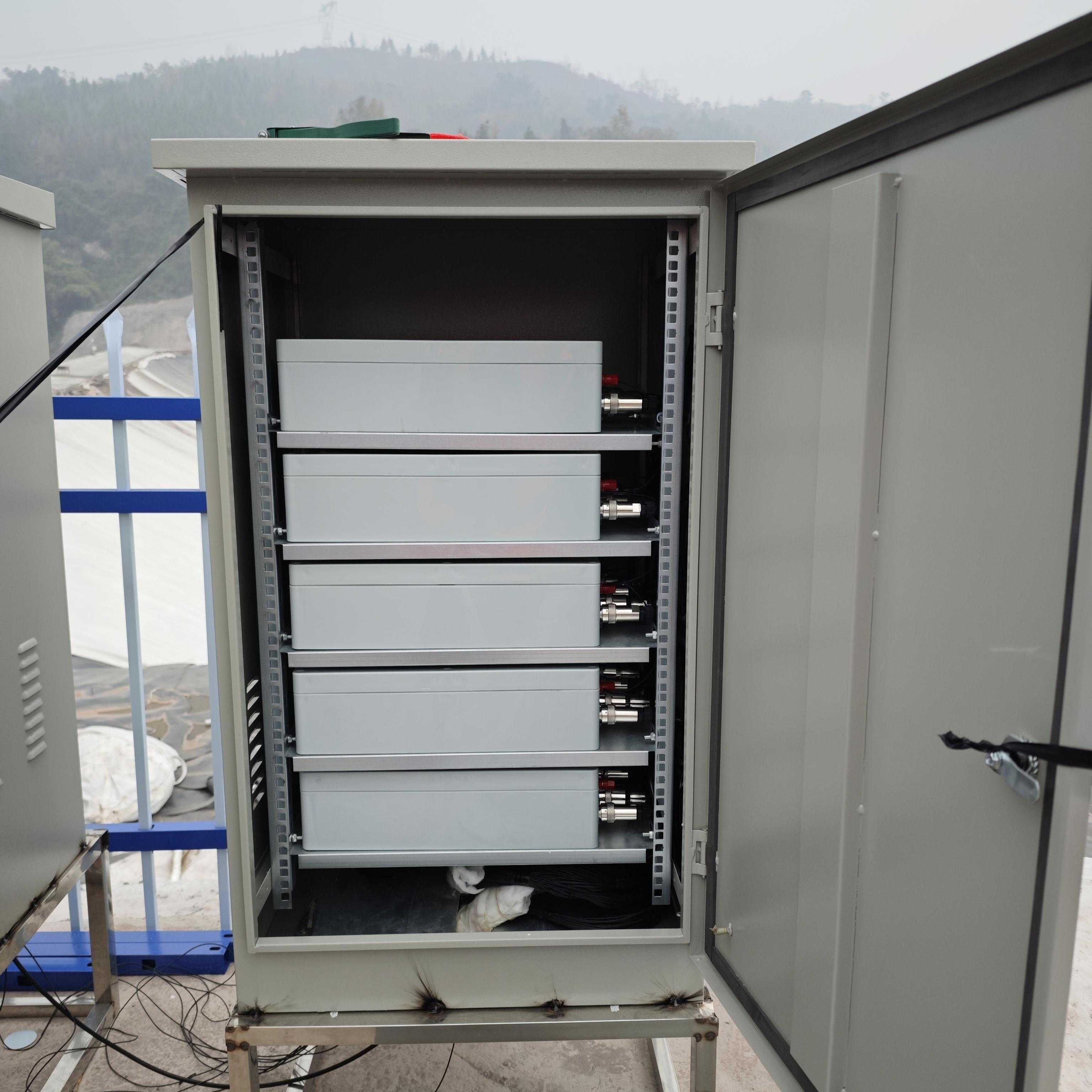

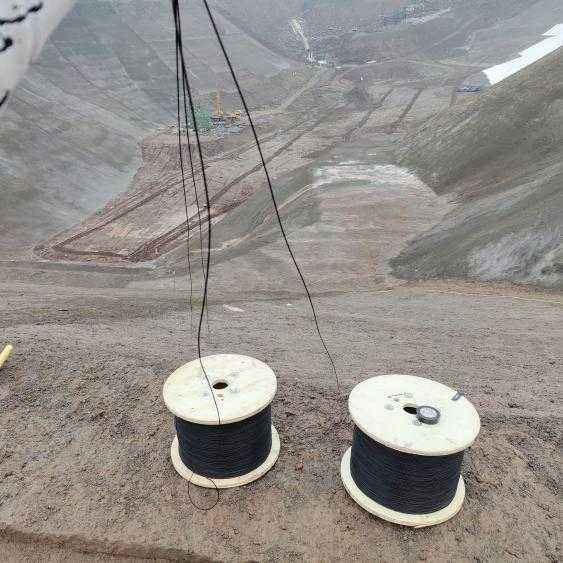

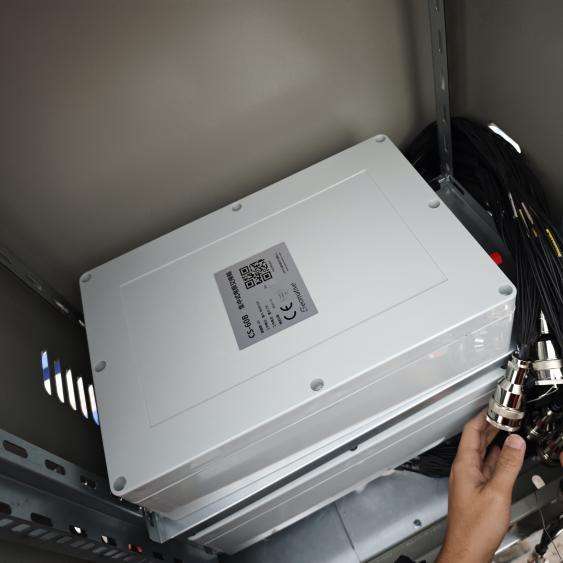

The implementation phase involved civil works, equipment installation, and system commissioning. The following photos document key stages of the on-site work.
The implemented monitoring and early warning system provides a comprehensive solution for ensuring the environmental safety of the tailings pond. By facilitating real-time data reception, graphical operations, statistical analysis, and predictive alert functions, the system enables continuous, real-time monitoring of the facility. This proactive approach is instrumental in preventing liner leakage and subsequent environmental pollution. The system's output provides clear, actionable insights, allowing operators to respond swiftly to any potential integrity issues before they escalate.

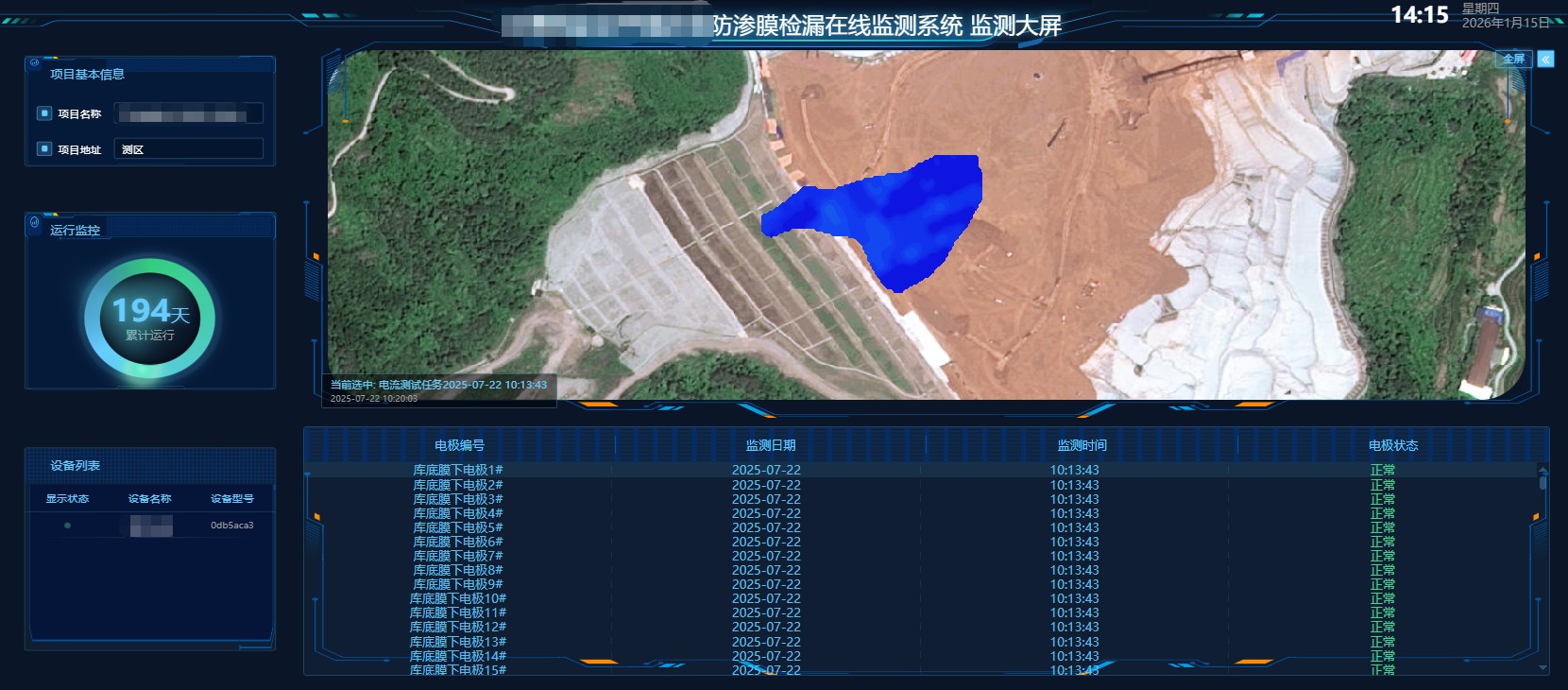

The successful deployment of this system demonstrates the value of integrating modern digital technologies into environmental management infrastructure. It is recommended that similar facilities adopt this proactive monitoring strategy to enhance environmental protection, ensure regulatory compliance, and safeguard public health. The results of the system's monitoring are presented through an intuitive user interface, as shown in the figure below.
