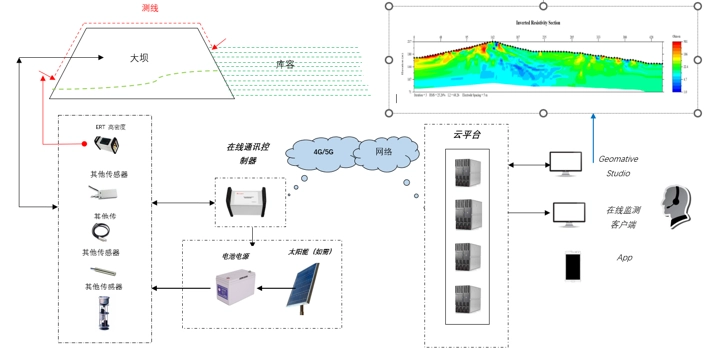

The electrogeophysical online monitoring system, centered on the digital platform for safety and environmental protection, combines the core technologies of Saiying Dimaigui in the field of geophysical exploration and monitoring, and has realized a digital platform with multi-parameters, comprehensive methods, and fully configurable scenarios. It can provide digital solutions for detection, exploration, and monitoring in underground environment remediation, civil and industrial construction investigation and construction, infrastructure operation and maintenance, mineral resource exploration and development, and ecological environment governance. The platform includes on-site automatic monitoring equipment, cloud data transmission systems, and business middleware. By comprehensively utilizing the Internet of Things, big data, and intelligent analysis models of monitoring data, it fully exploits information such as online monitoring data, working conditions, and abnormal situations for data early warning, alarm, analysis, and judgment.
Support real-time online monitoring, inversion, modeling and display of data.
Support the integration of multiple methods including manual inspection, regular inspection and real-time monitoring.
24-hour online real-time monitoring.
Support multi-user, multi-project, multi-level task collaboration and full-process data linkage.

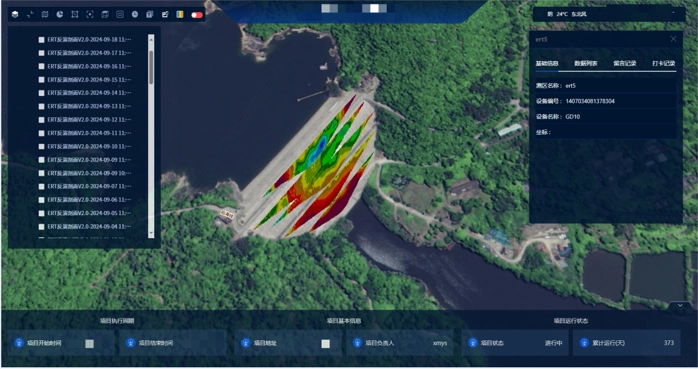

Support visual display on large screens.
Multiple alarm methods such as SMS, WeChat, email and sound-light.
7. Messages and alarms: message types can be set, alarm thresholds/levels/notifications can be set.

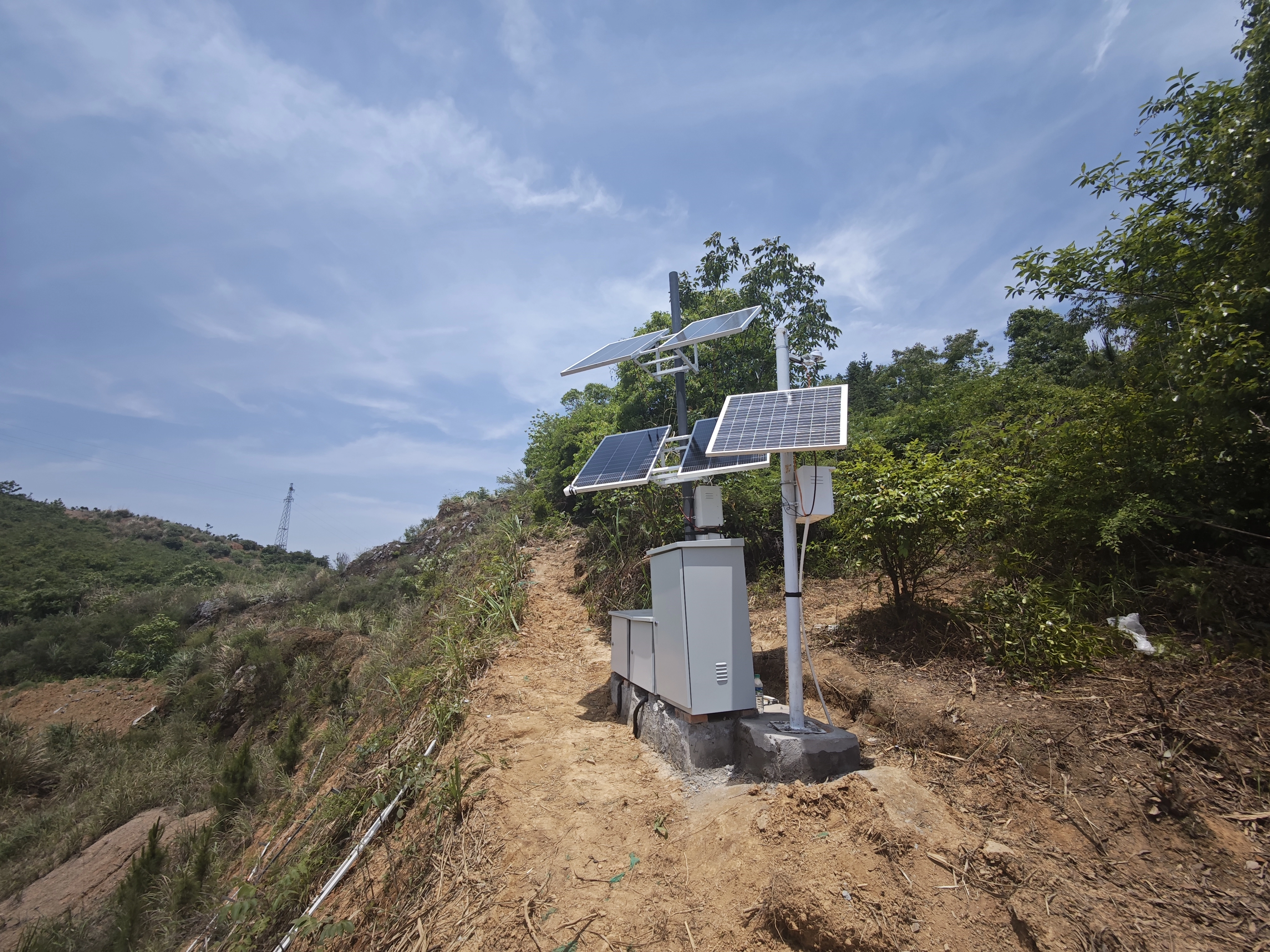

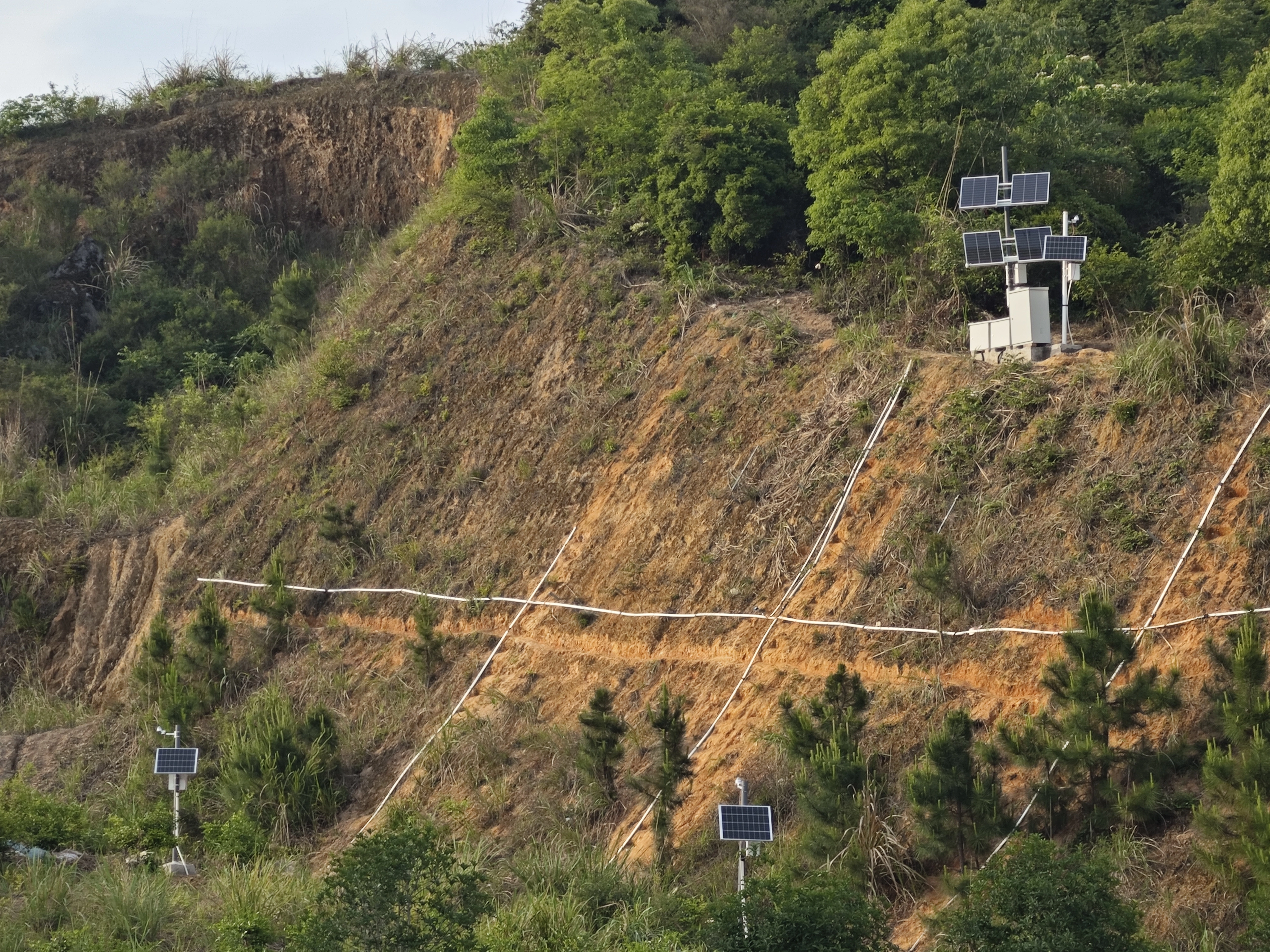

The construction of an online real-time resistivity monitoring system on the reservoir dam can effectively monitor the resistivity changes of the dam body in real time. The high-density electrical method instrument, through the observation of soil resistivity, can very intuitively present the changes in soil moisture content such as water level variations and dam seepage. Especially for minor internal seepage, it can be detected early. The system software can convert the resistivity change data into a chart with stratum structure, which is more intuitive. Continuous online monitoring data can be obtained and transmitted in real time to the cloud server center via wireless network to achieve remote monitoring of the embankment situation. This is conducive to comprehensively, scientifically and truly reflecting the seepage situation of the embankment, providing supervision means for real-time monitoring of the embankment.
| Technical indicators | Performance parameters |
| Maximum transmission power | 7200W |
| Current accuracy | Better than 0.1% |
| Protect | IP65, overcurrent, overvoltage, open circuit, high temperature, leakage |
| Voltage accuracy | 0.1%±1uV |
| Pulse waveform | Fang Bo |
| Pulse width | 0.5S、1S、2S、4S、8S、16S、32S |
| Number of channels | Single channel |
| Number of iterations | 1-255 |
| Power frequency interference | ≥120dB |
| Voltage measurement range | ±24V |
| Data port | USB、RS485 |
| Weight | 8.5kg |
| Size | 39×20×29cm |
| Working temperature | -20℃—60℃ |
| Working humidity | ≤95% |
| Technical indicators | Performance parameters |
| Transmitting voltage | 0-450V |
| Maximum current | The maximum current is 2.5A |
| Protect | IP65 |
| Output mode | Constant current |
| Input voltage | The input voltage is 24V DC or mains power |
| Communication method | Communication adopts 4G and 5G |
| flow | Annual data traffic: 6G |
| Working temperature | -10℃—50℃ |
| Technical indicators | Performance parameters |
| The greatest number | 60 |
| Input impedance | 10M |
| Maximum voltage | 10V |
| Analog-to-digital conversion accuracy | 12bit |
| Maximum sampling rate | 10KHz |
| Working temperature | -10℃—50℃ |
| Technical indicators | Performance parameters |
| Waterproof grade | IP68 |
| Tensile strength | 120kg |
| Electrode material | Stainless steel |
| Working temperature | -25℃—55℃ |
